  Shock Measurement Chart

In order to determine the proper length of shock needed for your application, you will be required to remove the existing shocks from your motorcycle.  Follow the steps provided below and make notes where necessary.  Use this information when ordering your new shocks.  To print this page, just press the print button on your browser.

Step 1.   Raise your motorcycle frame to allow the removal of rear shocks.

Step 2.   Remove the existing rear shocks.

Step 3.
Lower the motorcycle frame until the rear tire contacts the fender, belt guard or any other object that would  cause interference.  USE CAUTION.

Step 4.
From this point, raise the motorcycle frame approximately 1/2".  This is to provide additional clearance.

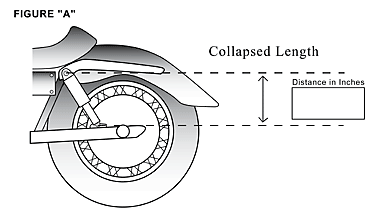

Step 5.   Measure the distance, in inches, between the upper shock mounting point and the lower shock mounting point.  This is the "Collapsed Length." (Figure A)



Step 6.
Raise the motorcycle frame to the desired ride height.  This is the height in which the motorcycle will sit at without rider weight.

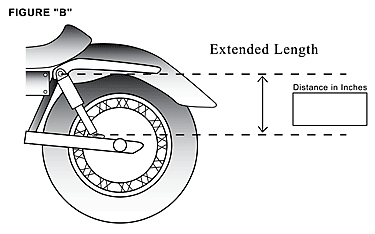

Step 7.   Measure the distance, in inches, between the upper shock mounting point and the lower shock mounting point.  This is the "Extended Length". (Figure B)



Step 8.
Please provide the measurements of both the Collapsed (Figure A) and Extended Lengths (Figure B) when ordering your Smooth Ride Shocks.

PLEASE NOTE:

Smooth Ride Custom Shocks
may require mounting hardware modifications for installation on some bikes.  Be sure to check each shock for proper alignment and clearance.  Use a thin wall socket for installation with standard hex hardware (B&T Hardware kits are available), do not use a crescent or pipe wrench.  Use of incorrect tools may result in damage to shocks.  B&T Manufacturing will not be responsible for damages caused by improper mounting, installer abuse or contact with frame or swing arm.
